Lab 3: Open Loop Control

Overview

In this lab, we are going to learn how to write a Python script to control the Turtlebot3 robot. Specifically, the task is to make the robot move in a square shape using open-loop control (i.e. sending commands only; no feedback). The waypoints to visit are [4, 0], [4, 4], [0, 4] and [0, 0]. In other words, the robot should move forward 4 meters, turn left 90 degrees, move forward again 4 meters, and so on, until going back to the origin. Note that the robot is supposed to stop at the origin after completing this square movement, and the Python script should exit gracefully.

Introduction to Turtlebot

The Turtlebot3 robot is a differential wheeled robot built on top of the Kobuki mobile base. We have customized it to include more sensors (one Lidar, two cameras, and one manipulator). See the image (right) below for Turtlebot family.

Though multiple layers of plates/sensors are placed on top of the robot, the kinematics of the robot can be simplified according to the property of its mobile base, which uses differential drive for locomotion. The differential mobile base has two powered wheels, located symmetrically about its center.

As users, we can send high-level commands (linear velocity v and angular velocity ω) to the robot. The mobile base will first transform the v and w commands with respect to the robot center into the desired rotational speed of each wheel, and then control the rotational speed by a feedback control of the current of the motor that drives the wheel.

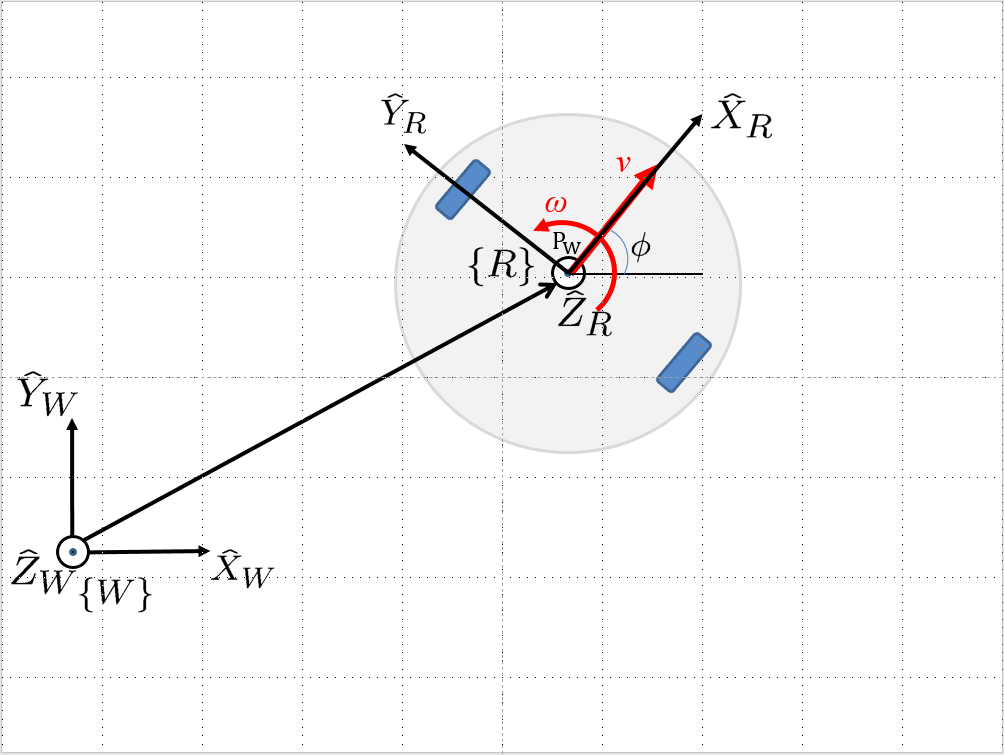

To describe the position and orientation of the robot, we attach a robot coordinate frame \(R\) to it. The origin of this coordinate frame is centered between its powered wheels. The X axis of this frame is pointing forward (along the direction of the linear velocity v), the Y axis is pointing to the left, and the Z axis is pointing up.

To track the position and orientation of the robot, we generally define a world reference frame \(W\), in the same plane where the robot moves. With this frame assignment, the robot’s position is constrained to the X − Y plane of frame \(W\). Moreover, any rotation between the robot and the world frames can be expressed as a rotation about Z axis. Therefore, the position of the robot with respect to the world reference frame will have the form:

\[\begin{split}P_W = \begin{bmatrix} x \\ y \\ 0 \end{bmatrix}\end{split}\]

while the rotation matrix expressing the orientation of the robot frame with respect to \(W\) will be of the from:

\[\begin{split}R_{WR} = \begin{bmatrix} cos(\phi) & -sin(\phi) & 0 \\ sin(\phi) & cos(\phi) & 0 \\ 0 & 0 & 1 \end{bmatrix}\end{split}\]

Installation Steps

First, let’s upgrade existing packages and install some dependencies for Turtlebot.

sudo apt-get update
sudo apt-get upgrade

Then, we clone and install the turtlebot3 ROS packages in our ROS workspace,

cd ~/catkin_ws/src/
git clone -b noetic-devel https://github.com/ROBOTIS-GIT/turtlebot3.git
git clone -b noetic-devel https://github.com/ROBOTIS-GIT/turtlebot3_msgs.git
git clone -b noetic-devel https://github.com/ROBOTIS-GIT/turtlebot3_simulations.git
cd ../

and then we build the workspace. 😉

Gazebo and Turtlebot3 Simulation

In order to spawn the Gazebo inside the simulated world, first we define the type of its model (burger, waffle, waffle_pi), and then we execute the ROS launch script,

export TURTLEBOT3_MODEL=burger
roslaunch turtlebot3_gazebo turtlebot3_empty_world.launch

The turtlebot3 supports teleoperation through geometry_msgs/Twist commands, via the corresponding ROS topic. To use a developed teleoperation script you can execute in a separate terminal,

rosrun turtlebot3_teleop turtlebot3_teleop_key

Sample Code

A sample code is provided to make the robot move forward for a certain distance. Please read carefully the provided code, and understand its functionality. You need to make changes under run function to complete the square trajectory.

Open a new terminal and go to your ee106w26 package. We will start from a new Python script.
```
roscd ee106w26
cd src
touch open_loop.py
gedit open_loop.py
```

Please copy and paste the following code, then save and close it.

#!/usr/bin/env python3

import rospy
from geometry_msgs.msg import Twist
from math import pi

class Turtlebot():
    def __init__(self):
        rospy.init_node("turtlebot_move")
        rospy.loginfo("Press Ctrl + C to terminate")
        self.vel_pub = rospy.Publisher("cmd_vel", Twist, queue_size=10)
        self.rate = rospy.Rate(10)
        self.run()


    def run(self):
        vel = Twist()
        vel.linear.x = 0.5
        vel.angular.z = 0
        #while not rospy.is_shutdown():  # uncomment to use while loop
        for i in range(50):
            self.vel_pub.publish(vel)
            self.rate.sleep()
        """
        vel.linear.x = 0
        vel.angular.z = 0.05
        #while not rospy.is_shutdown():  # uncomment to use while loop
        for i in range(50):
            self.vel_pub.publish(vel)
            self.rate.sleep()
        """

if __name__ == '__main__':
    try:
        tb = Turtlebot()
    except rospy.ROSInterruptException:
        rospy.loginfo("Action terminated.")

Sample Code Explained

Now, let’s break the code down.
The first line makes sure your script is executed as a Python script in Linux. You need this line if you want to run it as a regular executable (i.e. run by ./filename.py) in Linux.
```
#!/usr/bin/env python3
```
You need to import rospy in order to use ROS in Python. This is the Python library that contains common operations and resources in ROS.
```
import rospy
```
This line imports a Twist class that can carry linear and angular velocity information. Later on we will need to create an instance of this class, assign the velocity value, and publish it out to the robot.
```
from geometry_msgs.msg import Twist
```
We import a high-precision value of pi (in radian) from math library. Print it out and see its value :) This is for your convenience to add the turning part of the code.
```
from math import pi
```
We use class to better organize resources (variables and functions) in Python scripts. With class, we can easily update the value of a variable in one function and have access to it from another member function.
In the following code structure, we first define a class named Turtlebot, and then create an instance (object) called tb in the Python main function. The Python program will start running from the line right after if __name__ == '__main__':. However, to create a new instance, the program needs to run __init__ function for once (this is a function that every class must have for the initialization process). We then call run function under __init__ function. As such, each component is connected into the running pipeline.

The keyword self is a pointer used internally to refer to resources, and the keyword pass is just a placeholder that actually does nothing.

class Turtlebot():
    def __init__(self):
        self.run()

    def run(self):
        pass

if __name__ == '__main__':
    whatever = Turtlebot()

The try-except block is used to handle exceptions. In this case, it will provide logging information when the user terminates the program using Ctrl + C. For the time being, we do not need to know more details on this.
```
if __name__ == '__main__':
    try:
        whatever = Turtlebot()
    except rospy.ROSInterruptException:
        rospy.loginfo("Action terminated.")
```
In ROS, we have a ROS Master (or roscore) running as a central server to manage global resources and connect all ROS Nodes. Each program will need to talk to this central server first before talking to other program (this process is, in other words, to register itself as a ROS Node). Therefore, in each and every Python script running ROS, the first thing to do is to initialize itself as a ROS Node. The argument turtlebot_move is the name we would like to assign to this ROS Node.
```
rospy.init_node("turtlebot_move")
```
What follows is a common logging function used in ROS. In addition to printing the message to screen (as what print function does in Python), it can also save the log in ROS central server for further debugging purpose.
```
rospy.loginfo("Press Ctrl + C to terminate")
```
ROS Topic is a way that ROS Node communicates with each other for continuous data transmission. (In this case, we keep sending velocity commands.) For one-time short communication, we also have ROS Service, which will not be covered in this course.
On the robot side, there is a ROS Subscriber waiting for velocity commands. What we need to do in this script is to create a ROS Publisher to send commands. The required arguments are the topic name, the message type Twist, and the queue size 10.
```
self.vel_pub = rospy.Publisher("cmd_vel", Twist, queue_size=10)
```
The following question is how frequently we should send velocity commands. Note that the robot will stop if no velocity command is received after a while, and the robot may “panic” if thousands of commands are received in a second. Therefore, we can pick a moderate rate at 10Hz (i.e. 10 commands per second).
We use the Rate class to help us manage the timing. By using the rate.sleep() function together with while or for loop, we can approximately keep the loop running at 10Hz rate. The rate.sleep() function can calculate how much time elapsed since last time it was called. If this time elapsed is less than 1/rate (in this case 0.1s), it will block the program till the time has reached 1/rate. If the time has already exceeded 1/rate, it will simply let it go.
```
self.rate = rospy.Rate(10)
for i in range(50):
    self.vel_pub.publish(vel)
    self.rate.sleep()
```
To prepare a ROS Message that contains velocity data, we first create an instance (called vel) of the Twist class (which is the message we are about to send), and then assign linear and angular velocity to its corresponding variable. Note that you need to use . to have access to the member variables of a class data structure. See ROS Wiki documentation for more information about the message definition.
```
vel = Twist()
vel.linear.x = 0.5
vel.angular.z = 0
self.vel_pub.publish(vel)
```
Lastly, if you use while loop, it is highly recommended to add a condition to check if the ROS server is still alive. This can help terminate the Python script whenever you press Ctrl + C in the terminal. On the contrary, dead loop like while True: xxx will not respond to your shutdown commands (unless you add proper break condition in the loop).
```
while not rospy.is_shutdown():
    pass
```

Programming Tips

We follow ROS conventions to use SI units. (i.e. length in meter, time in second, angle in radian). See ROS Wiki article REP 103 Standard Units of Measure and Coordinate Conventions for more information.
When a new robot is spawned, the forward heading direction is the positive x axis; the leftward direction is the positive y axis; and by right-hand rule, z axis upward. This is also specified in REP 103.
In Gazebo, you can use Ctrl + R to set the robot back to the origin without the need to relaunch.
In this lab, you need to finely tune the parameters for open-loop control.
- In Gazebo, you can take the visualization as feedback (the grid size of the ground is 1 meter) to tune the parameters.

Reading Materials

ROS Nodes

ROS Topics and Messages

ROS Conventions

Submission

Submission: individual submission via Gradescope (please use exactly the same filename; autograder is case sensitive)
Due time: 11:59pm, Feb 5, Thursday
Files to submit:
- lab3_report.pdf with the open_loop.py included inside
Grading rubric:
- + 50% Clearly describe your approach and explain your code in the lab report. Capture a panoramic video of the robot demonstrating the followed trajectory inside the Gazebo world. You can use the simplescreenrecorder software, by installing it with,
sudo apt install simplescreenrecorder
- + 40% The robot can visit all four vertices of the square trajectory (error < 1.0m). Partial credits will be given according to the number of vertices visited.
- + 10% The script can complete the task on time and exit gracefully.
- - 15% Penalty applies for each late day.

Autograder

All code submissions will be graded automatically by an autograder uploaded to Gradescope. Your scripts will be tested on a Ubuntu cloud server using a similar ROS + Gazebo environment. The grading results will be available in a couple of minutes after submission. The autograder works in the following way (no action on your side needed; just to explain). (1) Under Gazebo simulation environment, the submitted Python script will be run for once and the robot trajectory will be saved into csv files. (2) The scores will be given by evaluating the saved trajectory and uploaded back to Gradescope. Testing parameters are as follows. The tolerance for distance error is set to 1.0m (considering this is open-loop control). For example, passing point [3.6, 3.4] is approximately equivalent to passing point [4.0, 4.0]. If running properly, the task in this lab can be done in about 1 min, based on our testing. It is important that your script can exit gracefully after task completion.
